Shimano

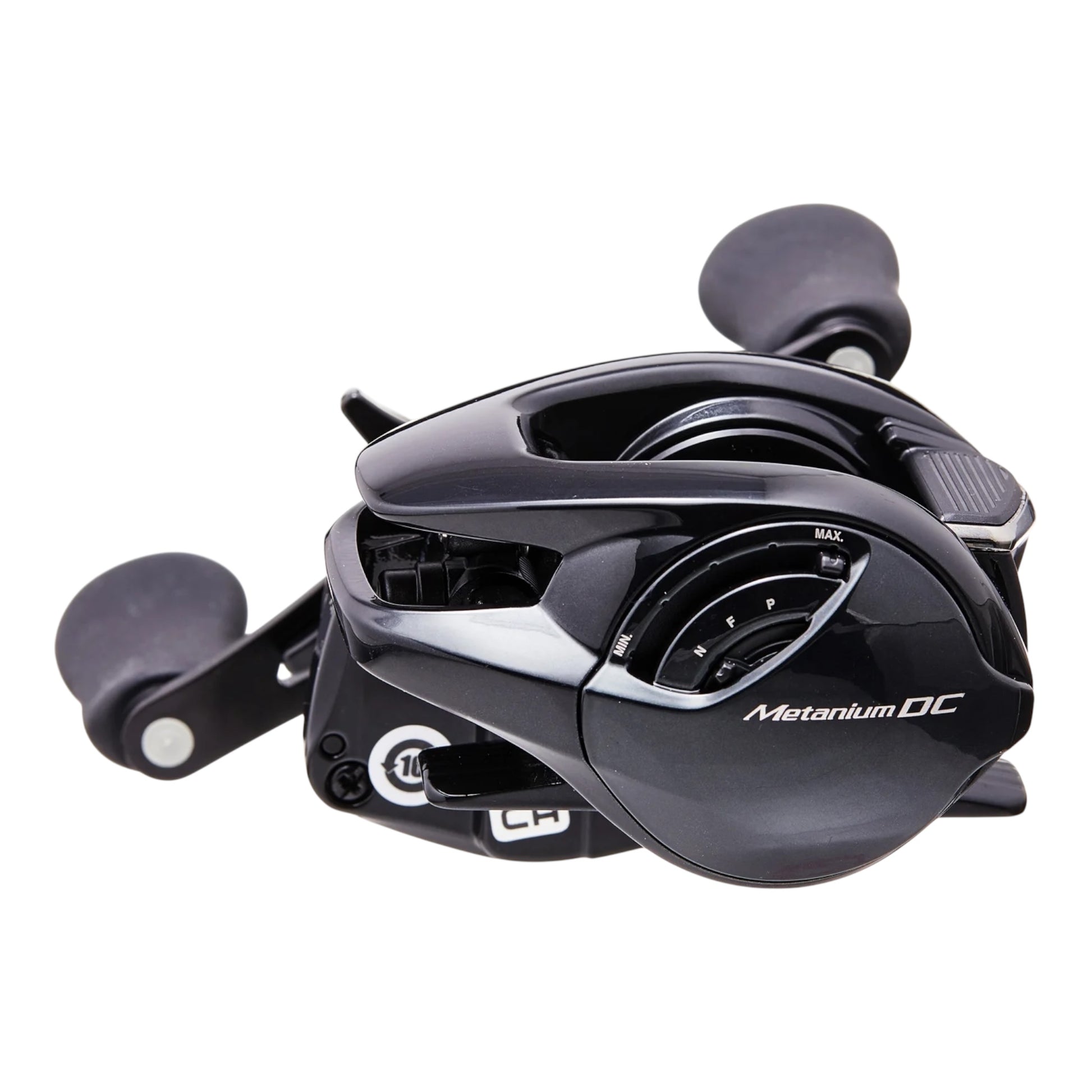

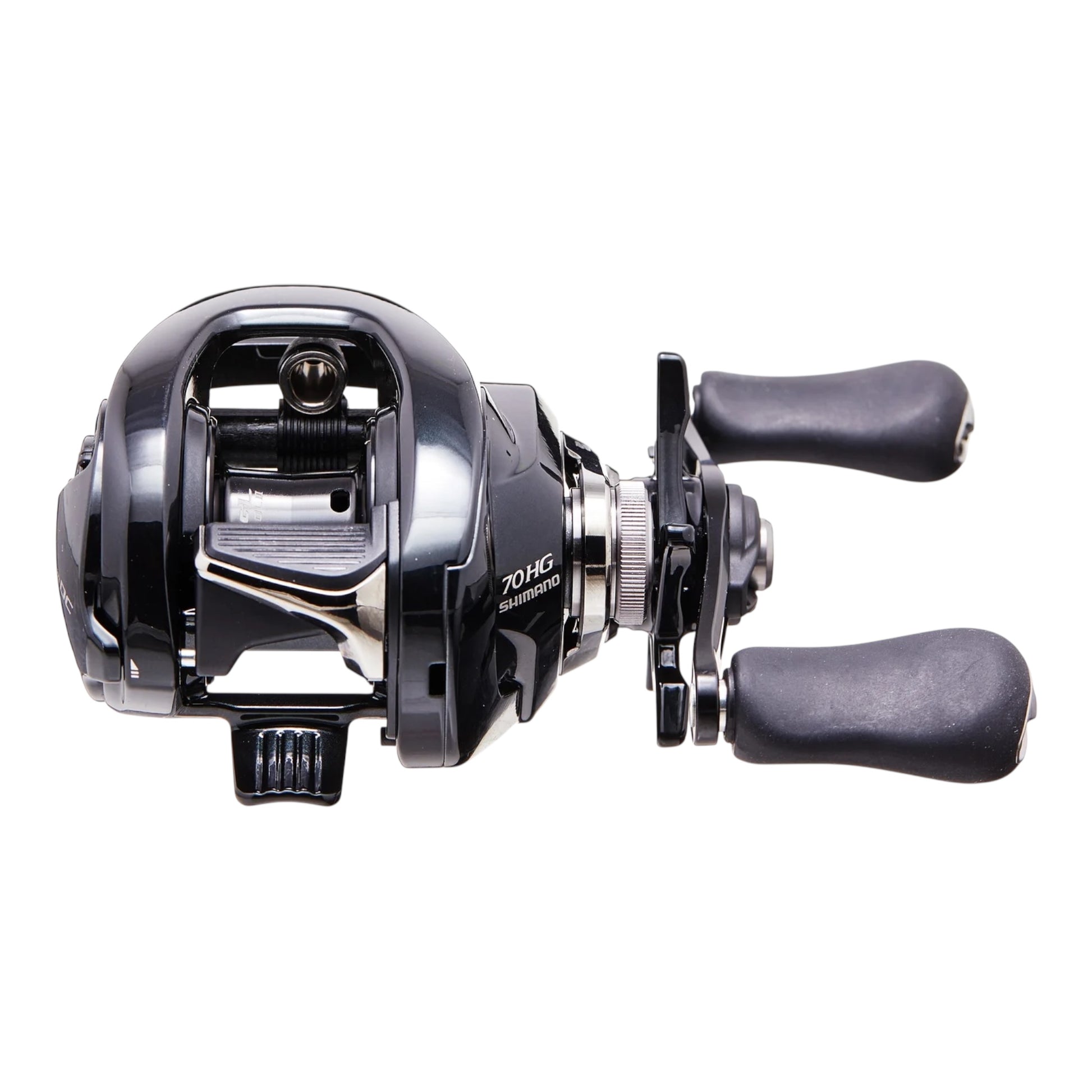

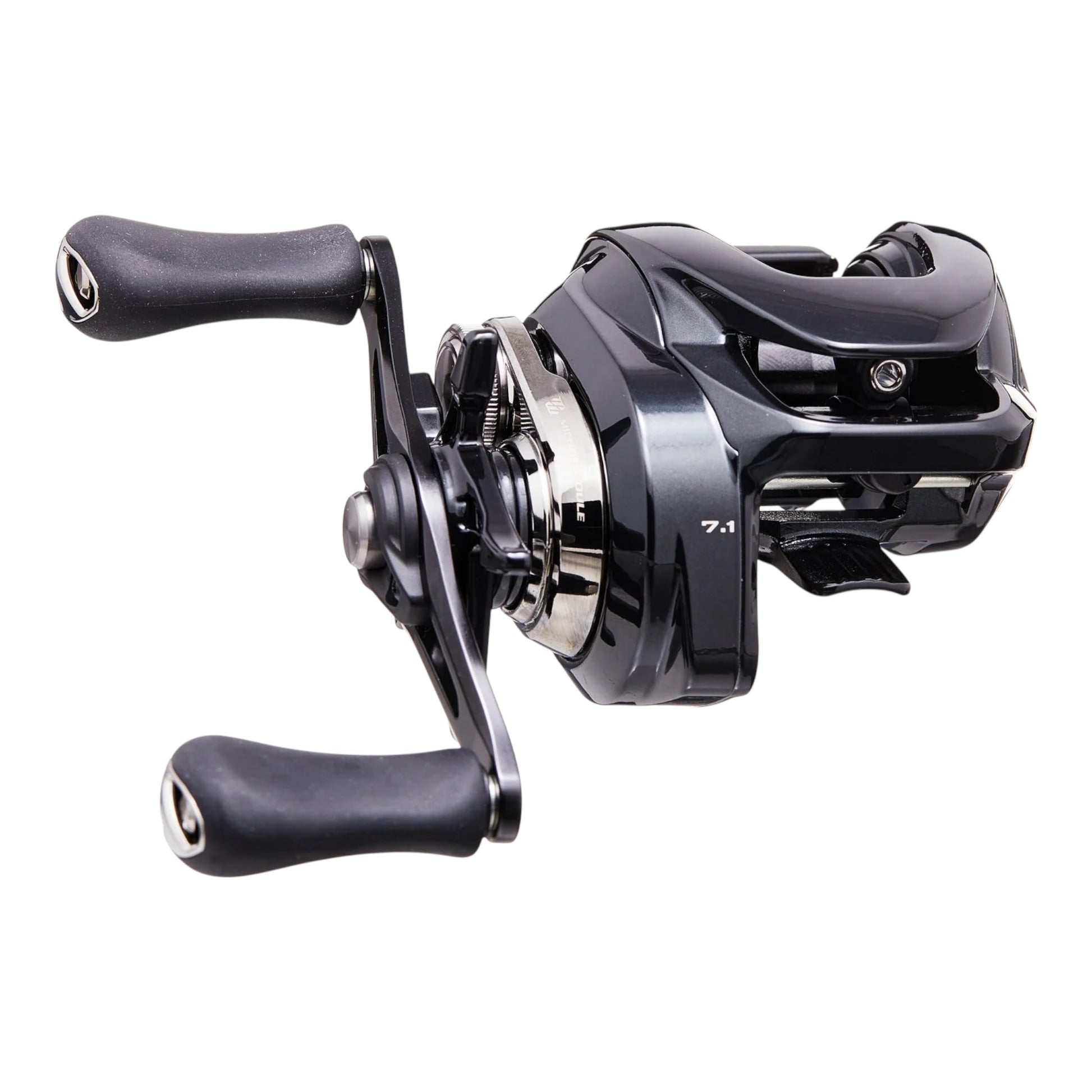

Shimano Metanium DC A Casting Reels

Shimano Metanium DC A Casting Reels

$539.99 USD
$539.99 USD
Sale Sold out

Low stock: 1 left

California Prop 65

WARNING: This product contains chemicals known to the State fo California to cause cancer and birth defects or other reproductive harm.

For more information: www.p65warnings.ca.gov

Shimano's lightest DC reel to date, the magnesium-bodied Metanium DC 70 offers anglers pinnacle performance through digital control. Shimano's proprietary I-DC5 braking system fine-tunes reel function based on lure choice and fishing conditions, providing versatility in any angling scenario.

CoreSolid Body integrates the B-Side Plate, levelwind guard and frame into a solid one-piece construction. This delivers an unprecedented feeling of rigidity and sensitivity, and is the first design of this type in a low-profile baitcast reel.

X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.

Super Free Spool eliminates friction on the spool shaft during the cast. Standard baitcasting reels are constructed in a way that when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft. This creates friction that can limit the length of a cast. But baitcasting reels with Super Free Spool are constructed so that the pinion gear is supported by a ball bearing. When the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result: zero friction is placed upon the spool shaft and enhances casting performance.


CI4 is a Shimano original material reinforced with carbon fiber that is lighter and has a higher strength than conventional resin material. CI4+ is an advanced version of the original CI4 material and is 2.5x more rigid than its predecessor. While improving lightness and rigidity, reel bodies and rotors built with CI4+ are further reduced in size and weight.

By applying slight pressure to the bearing holding the spool, SilentTune reduces the vibration of the bearing during high-speed rotation. This improves the quietness while casting and the rise of the spool rotation becomes even smoother.

HAGANE is a Shimano reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. HAGANE is for all anglers.
The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.

Intelligent Digital Control braking system allows anglers to fine-tune their reel to the perfect setting for each line/lure combination, achieving trouble-free and enhanced casting distance. I-DC5 has two sets of dial adjustments.
With the inside dial, anglers can select the type of fishing line being used: Nylon Monofilament (N), Fluorocarbon (F) or Braided Line (PE). The outside dial adjustment is based on the lure type: 1. Big Lures (5/8 to 1 oz) with low air resistance, 2. Medium Lures (3/8 to 3/4 oz), 3. Small Lures (1/4 to 7/16 oz) with high air resistance or 4. Finesse Lures (3/16 to 1/4 oz). The final setting is the ‘AUTO’ function (A), letting the onboard DC decide the optimal brake setting. The I-DC5 braking system uses more magnets to assist braking compared to the previous systems. With the addition of a ring magnet, brake force can be applied more evenly and increases the maximum spool revolution by 12% at the start of a cast.

S3D technology leads to significantly reduced spool vibration. By designing and constructing a balanced and uniform thin-wall aluminum spool, S3D creates an incredibly smooth feeling when casting and retrieving lures.

MGL Spool III is the low inertia spool that designed with thin spool wall keeping the durability, This contribute to improve the casting performance, quick response, long distance, cast feeling and castability.

S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.

The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.

The MicroModule Gear system creates a smooth retrieve by utilizing smaller teeth to increase the number of contact points between the drive gear and pinion gear. Ultimately, this produces a more efficient gear train with less of a gear feel.

Bearings - 10BB + 1RB
Line Capacity - 10/105, 12/85
Max Drag - 11 lbs
Weight - 6.3 oz
